TPMS Programming Tool| FOXWELL

T20

Foxwell Universal Programmable Tpms Sensor

Integrating 315MHz and 433MHz dual frequency, the tpms sensor can replace more than 99% of the direct tire pressure system OEM sensors on the market. Today, foxwell new arrival T20 gets peace of mind that the fit, form, and function are up to the high standards and specifications of the 0EM quality you need. With Foxwell TPMS service tools, the universal tpms sensor can be easily activated and programmed within seconds, which can be an essential tire device for professional tire shops, home repair, and DlYers.

1) Compatible with more than 98% of the vehicles equipped with a tire pressure system

2) 315MHz and 433MHz dual frequency universal TPMS sensor

3) Wireless sensor programming with Foxwell TPMS service tools

4) 315MHz & 433MHz TPMS sensor can be reprogrammed without any limitations

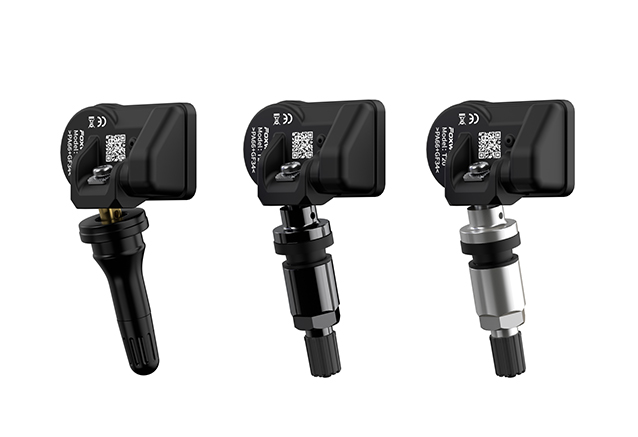

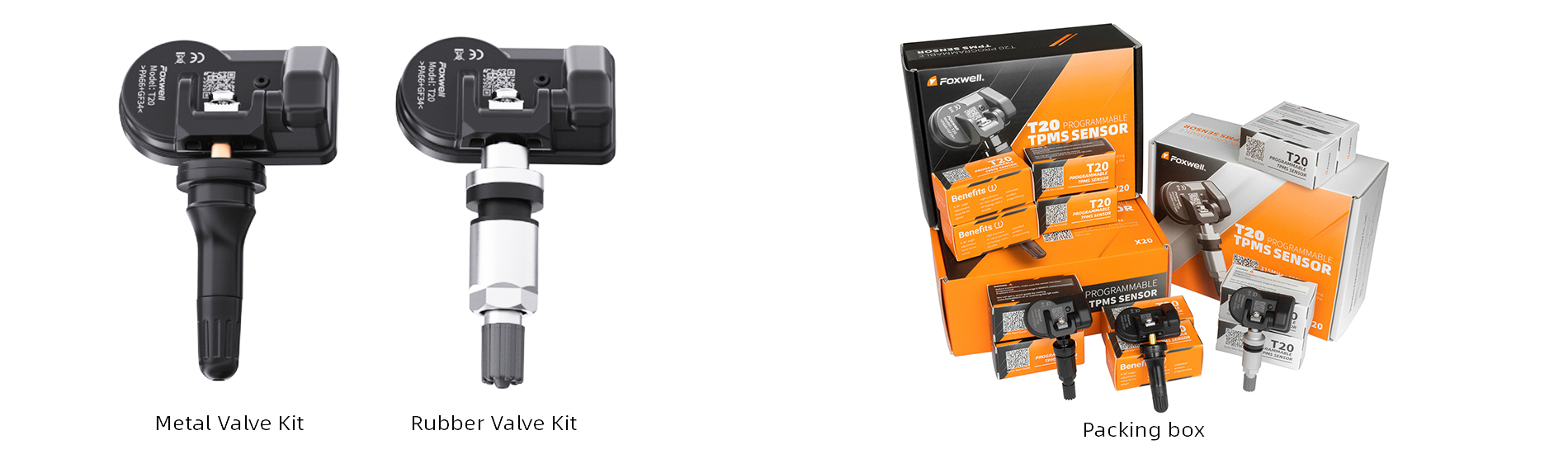

5) Interchangeable valves-rubber or metal valve

6) Unique serial numbers to assure quality control

7) High precision air valve to avoid air leakage

8) Built-in battery with an extended service life (more than 5 years).

9) 0-30° adjustable angle

Model	T20
Battery Life	More than 5 years
Operation Temperature	(-)40°C to +125°C
Storage Temperature	(-)40°C to +35°C
Operation Humidity	≤90%
Operating Frequency	315 MHz / 433 MHz
Low Frequency	125K
Pressure Monitoring Range	0 to 900kPa
Pressure Reading Accuracy	±1 kPa
Temperature Reading Range	(-) 40°C to +125°C
Temperature Reading Accuracy	±1°C
G Sensor Reading Accuracy	±1g
Transmission Power	5-8 dBm
Battery	3.0 V
Dimensions(W x H X D)	46.2x27.8x17.7mm
Weight without valve	12g

None

T20 Quick Start Guide

Universal TPMS Sensor
