Why TPMS Tools are Used and How They Work

Tire Pressure Monitoring Systems (TPMS) are critical safety features in modern vehicles, helping drivers maintain optimal tire pressure and ensuring safer driving conditions. TPMS tools are specialized devices used to maintain, repair, and diagnose these systems, ensuring they function properly. In this article, we will explore why TPMS tools are essential and how they work in servicing and maintaining these systems.

What is a TPMS Sensor?

A TPMS sensor is an essential component that monitors the air pressure inside a vehicle's tires. Each sensor is designed to communicate wirelessly with the vehicle's onboard system, providing real-time tire pressure data. When the tire pressure falls below a safe threshold, the sensor triggers a warning light on the dashboard to alert the driver. These sensors are specifically programmed to work with a particular vehicle make, model, and year, and each sensor is assigned a unique code that the vehicle's system recognizes.

Why are TPMS Tools Used?

TPMS tools are vital for several reasons. They are used primarily for the initial setup, repair, and maintenance of the TPMS system. After tire repairs, replacements, or rotations, the TPMS sensor may need to be relearned or reprogrammed to ensure the sensors are functioning correctly. TPMS tools are used to connect to the vehicle's system and help the vehicle recognize the new sensor locations, ensuring the system can detect the correct tire pressures.

Relearning TPMS Sensors

When TPMS sensors are replaced or repositioned, the vehicle's onboard system needs to relearn the sensor positions. This process allows the car's computer to associate the sensor IDs with the correct tire positions, ensuring accurate monitoring of tire pressure. There are various methods for relearning a TPMS system, depending on the vehicle's make and model. These methods include:

- Automatic Relearn: In some cases, after replacing the sensors or rotating the tires, the vehicle can relearn the sensors automatically. This process typically involves driving the vehicle for about 20 minutes, during which the sensors communicate their unique IDs and locations to the control module.

- Stationary Relearn: This method involves putting the vehicle in relearn mode, usually through a series of specific steps outlined by the vehicle's manufacturer. The technician then uses a TPMS tool to activate each sensor individually to transmit its ID and location to the control module.

- OBDII Relearn: This is the most common method for vehicles with more complex systems. The TPMS tool connects to the vehicle's OBDII port, which allows it to reprogram the sensor IDs and positions in the control module.

How Do TPMS Tools Work?

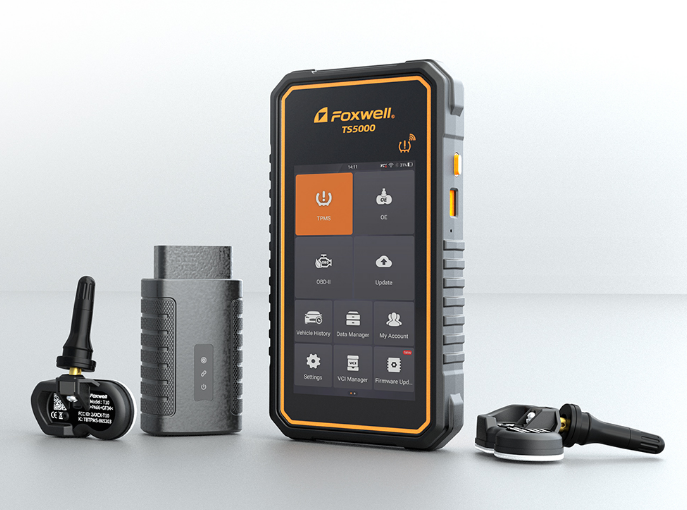

TPMS tools are designed to communicate with the vehicle's TPMS control module. They connect to the vehicle either wirelessly or via a physical connection, like the OBDII port. A good TPMS tool can perform a variety of functions:

- Sensor Activation: TPMS tools can activate sensors to allow the vehicle's system to learn their unique IDs and positions. This is particularly useful when replacing sensors or after tire rotations.

- Sensor Testing: TPMS tools can also check whether a TPMS sensor is working correctly. This can help diagnose issues like a malfunctioning sensor or a dead battery inside the sensor. Ensuring that all sensors are functioning correctly is critical for maintaining safe tire pressure levels.

- Relearn Functionality: As mentioned earlier, some TPMS tools can guide technicians through the relearn process, whether it's automatic, stationary, or OBDII-based. The tool will display which type of relearn is required for the specific vehicle being serviced.

Basic vs. Advanced TPMS Tools

Basic TPMS tools typically offer the ability to wirelessly check tire pressure and ensure that the sensors are working correctly. These tools are invaluable for everyday maintenance, as they can identify malfunctioning sensors and alert technicians to potential problems. However, they have limited functionality when it comes to advanced repairs or sensor programming.

On the other hand, advanced TPMS tools provide a comprehensive range of services, including the ability to activate, program, and relearn sensors. These tools can connect to the vehicle's OBDII port, perform full sensor diagnosis, and guide technicians through more complex repairs. For shops and technicians handling more intricate TPMS-related tasks, these advanced tools are essential for maintaining the functionality and safety of the system.

Conclusion

TPMS tools are indispensable for ensuring the proper functioning of tire pressure monitoring systems. Whether you need to replace a faulty sensor, rotate tires, or program a new set of sensors, a TPMS tool is required to ensure that the system works correctly and the sensors are aligned with the right tires. From basic tools that check tire pressure to advanced devices that handle complex repairs, these tools help technicians ensure that your vehicle's tire pressure system operates at peak performance, ultimately contributing to safer driving conditions.
